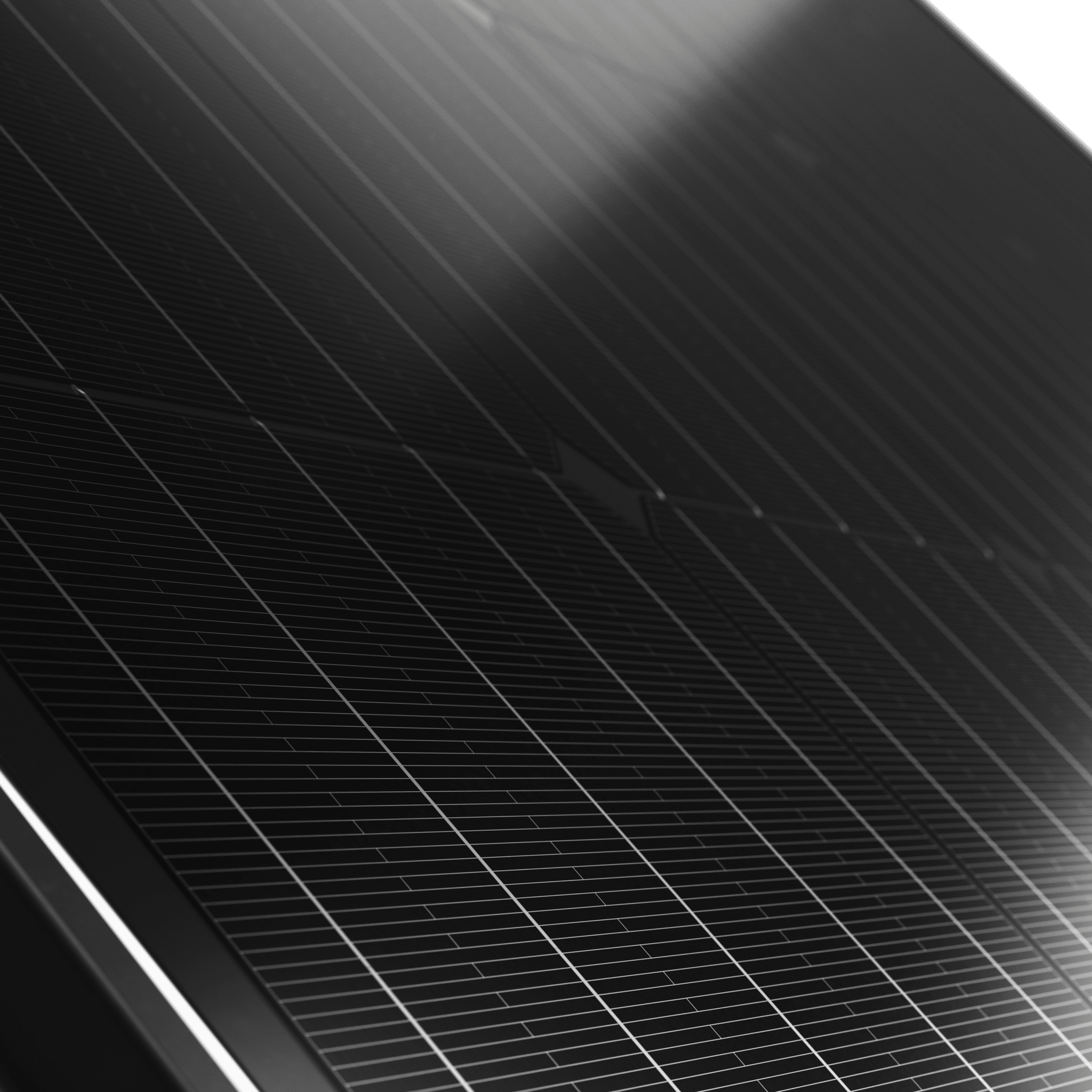

Composite Solar Roof Tile

Our most innovative solar solution to date. Combining our guaranteed high quality with our desire to satisfy the growing demand for renewable energy, this product optimises the energy generation potential of any building rooftop.

Our patented design with practicality, appearance and quality in mind the solar roof tile is the perfect solution for satisfying the increasing need for a green energy transition.

UK Manufactured

Reliable Performance

.

Sustainable Product

Mechanical Data

Length (mm)

1365

Width (mm)

1028

Thickness (mm)

17.5

Weight (kg)

16

Cell Type

Mono Perc

Discreet and Flush finish

Simple Connection

A-Grade Cell Efficiency

Electrical Data

Number of Cells

42

Maximum Power (W)

200

Maximum Power Voltage (Vmp) (V)

23

Maximum Power Current (Imp) (A)

8.87

Open Circuit Voltage (Voc) (V)

27

Short Circuit Current (Isc) (A)

9.28

Cell Efficiency (%)

22.5

Key Features

Overhang for secure and flush fixing

Bypass diodes ensure reduced shading impact

Elongated countersink for roof pitch adaptability

Whole module is laminated ensuring tile is watertight and a sealed unit

Simple traditional roof tile interlock for ease of installation

High efficiency solar cells

Significantly reduced installation time

Creating the new normal for building practices

A simple reroofing solution that maximises return. This product operates as a standard roof tile with the added benefit of generating renewable energy.
